Networking Essentials 3.0 Module 1-4 | Checkpoint Exam: Build a Small Network Answers Full 100% 2023 2024
This Networking Essentials 3.0 Module 1-4 section for Checkpoint Exam: Build a Small Network Answers which is provided with the correct answers to 100% of the questions. This module 1-4 exam answer is used for the Cisco SkillsForAll platform which is the latest version just released in 2023 2024. Review all the questions and answers here, then you will meet randomly 20 questions from all here.
-
What is the order of bandwidth measurement from smallest to largest?
- Tbps, Mbps, Kbps, Gbps
- Kbps, Mbps, Gbps, Tbps
- Kbps, Tbps, Mbps, Gbps
- Gbps, Tbps, Mbps, Kbps
Explanation and Hint:
Command bandwidth measurements are as follows from smallest to largest:
- Thousands of bits per second (Kbps) or Kilobits per second
- Millions of bits per second (Mbps) or Megabits per second
- Billions of bits per second (Gbps) or Gigabits per second
- Trillions of bits per second (Tbps) or Terabits per second
-
A user is looking for a wireless headphone for listening to songs stored on a smartphone. What wireless technology would the headphone use?
- Bluetooth
- Wi-Fi
- infrared
- 3G/4G
Explanation and Hint:
Bluetooth is a wireless technology for data exchange over a short distance. It is suitable for connecting devices with simple tasks, such as headsets, keyboards, mice, and printers. Wi-Fi is suitable for variety of applications with high speed wireless connectivity required or preferred. Infrared requires a direct line of sight between the transmitter and the receiver. 3G/4G are cellular network technologies to manage voice calls and data transmission between clients and service providers.
-
Which is a characteristic of the Internet?
- It supports only wired network connections.
- It is not centrally governed.
- It is localized to specific geographic locations.
- It is operated by the US government.
Explanation and Hint:
The Internet is a global system of interconnected computer networks that has no central governance. It is not limited to geographic boundaries and uses static public IP addresses for communication.
-
How many unique values are possible using a single binary digit?
- 16
- 2
- 4
- 8
- 9
- 1
Explanation and Hint:
A bit is stored and transmitted as one of two possible discrete states. Each bit can only have one of two possible values, 0 or 1. The term bit is an abbreviation of “binary digit” and represents the smallest piece of data.
-
What data representation is used when a computer or network device is processing data?
- binary
- text
- readable
- inferred
Explanation and Hint:
Computers use 1s and 0s or binary code to represent and interpret text, numbers, and special characters.
-
Which items are collectively referred to as network media?
- wires and radio waves
- routers and switches
- PCs and laptops
- firewalls and servers
Explanation and Hint:
Network media is a term used to describe the actual physical layer transport along the path over which an electrical signal travels as it moves from one component to another.
-
What allows digital devices to interconnect and transmit data?
- a sensor
- a global positioning sensor
- a network
- a smart phone
Explanation and Hint:
A network connects people and devices through wired or wireless means.
-
Which three devices are considered intermediate devices in a network? (Choose three.)
- network printer
- workstation
- router
- switch
- server
- wireless access point
Explanation and Hint:
Intermediate devices in a network provide network connectivity to end devices and transfer user data packets during data communications.
-
What are two types of wired high-speed Internet connections? (Choose two.)
- dial-up
- cable
- satellite
- cellular
- DSL
Explanation and Hint:
Cable and DSL Internet technologies both use physical cabling to provide an Internet connection to a residence or a small business. Although dial-up is a wired technology, it does not provide a high-speed Internet connection. Satellite and cellular connections provide a wireless Internet connection.
-
Match each device to a category.
Networking Essentials 3.0 Module 1-4 Checkpoint Exam Build a Small Network Answers 001 - PC —> End devices
- Printer —> End devices
- Firewall —> Intermediary devices
- Smart device —> End devices
- Router —> Intermediary devices
- Switch —> Intermediary devices
Explanation and Hint:
Options matched to the correct selection.
end devices intermediary devices PC Firewall Printer Router Smart device Switch
-
Which two devices are considered end devices? (Choose two.)
- hub
- printer
- router
- switch
- laptop
Explanation and Hint:
A device that forms the interface between users and the underlying communication network is known as an end device. End devices are either the source or destination of a message.
-
Which two methods are used to directly connect mobile devices such as tablets and smartphones to a data network? (Choose two.)
- wired Ethernet
- Bluetooth
- WiMax
- Wi-Fi
- cellular communications
Explanation and Hint:
Mobile devices connect wirelessly to data networks using either Wi-Fi or a telecommunication provider cellular network. Bluetooth is used to connect to peripherals or other local devices over very short distances. Ethernet is a wired network access technology and is not used by mobile devices. Mobile devices do not typically implement WiMAX technology.
-
What are two methods typically used on a mobile device to provide internet connectivity? (Choose two.)
- cellular
- GPS
- NFC
- Wi-Fi
- Bluetooth
Explanation and Hint:
Mobile devices commonly use Wi-Fi and cellular to connect to the internet. The cellular connection uses the cellular data network for a fee. The Wi-Fi connection uses an 802.11 wireless network in the area to connect to the internet.
-
In the context of mobile devices, what does the term tethering involve?
- connecting a mobile device to another mobile device or computer to share a network connection
- connecting a mobile device to a USB port on a computer in order to charge the mobile device
- connecting a mobile device to a hands-free headset
- connecting a mobile device to a 4G cellular network
Explanation and Hint:
Tethering allows a laptop or PC to use the Internet connection of a mobile device such as a cell phone, usually through a cellular data connection. This allows devices to connect to the Internet in locations where there is no Wi-Fi or cabled connection, but where there is still a cellular data connection.
-
A consumer places a smartphone close to a pay terminal at a store and the shopping charge is successfully paid. Which type of wireless technology was used?
- Wi-Fi
- 3G
- NFC
- Bluetooth
Explanation and Hint:
NFC is a wireless technology that allows data to be exchanged between devices that are in very close proximity to each other.
-
What information may be requested when pairing devices over Bluetooth?
- a PIN
- a username
- the SSID
- an IP address
Explanation and Hint:
During the pairing process, a personal identification number (PIN) may be requested for authentication.
-

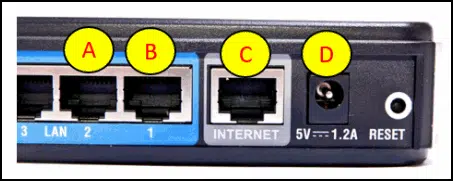

Refer to the exhibit. Which router port connects to the modem provided by the service provider?
Network Basics Module 1 – 4 Checkpoint Exam Answers 01 - A
- D
- B
- C
Explanation and Hint:
The ports shown in the diagram are used as follows: The LAN ports, A and B, are used to connect wired devices on the home network. The Internet port, C, is connected to the modem. The port, labeled D, is the 5V DC power port that supplies power to the router.
-
Which technology is used to uniquely identify a WLAN network?
- SSID
- WPA
- WEP
- MAC address table
Explanation and Hint:
When a wireless AP or router is being set up, an SSID is configured to uniquely identify the WLAN that is managed by the device.
-
What two radio frequency bands are used in home Wireless LANs? (Choose two.)
- 5 GHz
- 900 GHz
- 9 MHz
- 2.4 GHz
- 5 MHz
Explanation and Hint:
The wireless technologies most frequently used in home networks are in the unlicensed 2.4 GHz and 5 GHz frequency ranges.
-
A user is setting up a home wireless network. Which type of device must the user have in order to establish the wireless network and provide access to the internet for multiple home devices?
- hub
- switch
- patch panel
- wireless router
Explanation and Hint:
A wireless router connects multiple wireless devices to the network. It will then aggregate the internet access requests from home devices to the internet.
-
Which wireless RF band do IEEE 802.11b/g devices use?
- 900 MHz
- 60 GHz
- 2.4 GHz
- 5 GHz
Explanation and Hint:
900 MHz is an FCC wireless technology that was used before development of the 802.11 standards. 900 MHz devices have a larger coverage range than the higher frequencies have and do not require line of sight between devices. 802.11b/g/n/ad devices all operate at 2.4 GHz. 802.11a/n/ac/ad devices operate at 5 GHz, and 802.11ad devices operate at 60 GHz.
-
Which feature is characteristic of MAC filtering in wireless networks?
- It allows only authorized users to detect the network.
- It encrypts data that is transmitted on a wireless network.
- It restricts computer access to a wireless network.
- It is configured on the computer rather than on the router.
Explanation and Hint:
MAC address filtering uses the MAC address to identify which devices are allowed to connect to the wireless network.
